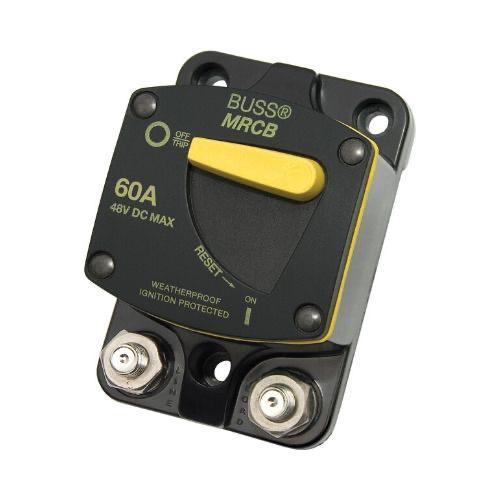

187 Series Circuit Breaker Surface Mount

187 Series Circuit Breaker Surface Mount

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$100.30
$100.30 $156.72
SAVE 36% Sold out
187 Series Circuit Breaker Surface Mount

187 Series Circuit Breaker Surface Mount

$100.30
$100.30 $156.72
SAVE 36% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
Provides circuit protection for 25 to 200 amp loads when switching and circuit protection are both required
Features
  • Self-trimming case eliminates need for mounting panels or trim bezels
  • Visible yellow reset lever shows open condition
  • Trip-free design cannot be held closed after trip
  • Recessed mounting holes for clean appearance
    Specifications
  • Interrupting Capacity 5,000A @ 12V DC, 3,000A @ 24V DC, 1,500A @ 42V DC
  • Voltage Max. Operating 48V DC
  • Temperature Min. Operating -40°C
  • Temperature Max. Operating 85°C
  • Type Thermal
  • Class Type III – Switchable/Manual Reset – Trip Free
  • Terminal Stud 5⁄16""-18
  • Terminal Stud Torque 75 in-lb max.
  • Trip Time Delay See bluesea.com
  • Mounting Hole Accepts #10 (M5) Screw
    • View full details
