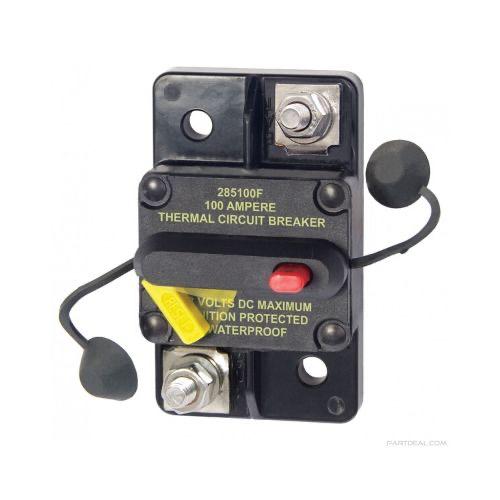

285 Series Circuit Breaker Surface Mount (Bulked)

285 Series Circuit Breaker Surface Mount (Bulked)

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$62.90
$62.90 $86.16
SAVE 26% Sold out
285 Series Circuit Breaker Surface Mount (Bulked)

285 Series Circuit Breaker Surface Mount (Bulked)

$62.90
$62.90 $86.16
SAVE 26% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
Provides circuit protection for 25-150amp loads when switching and circuit protection are both required.
  • Visible yellow reset lever shows open condition
  • Trip-free design cannot be held closed after trip
  • Drop in replacement for 185 Series Circuit Breakers
  • 3,000A AIC for medium battery banks
    Specifications
  • Interrupting Capacity 3,000A @ 48V DC†
  • Voltage Max. Operating 48V DC
  • Temperature Min. Operating -40°C
  • Temperature Max. Operating 85°C
  • Type Thermal
  • Class Type III – Switchable/Manual Reset – Trip Free
  • Terminal Stud M6 (accepts 1/4"" Ring Terminal)
  • Terminal Stud Torque 50 in-lb (7.9 Nm)
  • Mounting Hole Accepts 1/4"" screw (M6)
