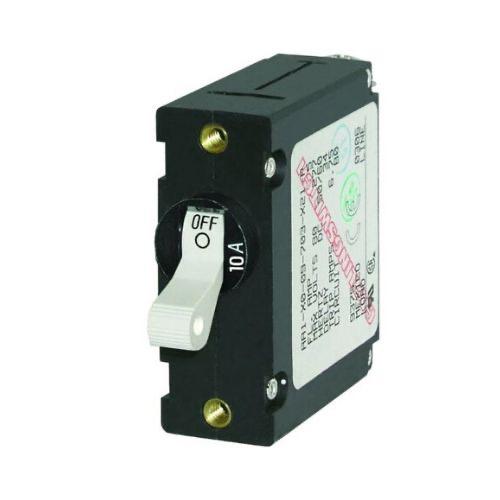

• A-Series Toggle Single Pole Circuit Breaker

A-Series Toggle Single Pole Circuit Breaker

A-Series Toggle Single Pole Circuit Breaker

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$21.71
$21.71 $33.40
SAVE 35% Sold out
A-Series Toggle Single Pole Circuit Breaker

A-Series Toggle Single Pole Circuit Breaker

$21.71
$21.71 $33.40
SAVE 35% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
Combines switching and circuit protection into a single device.
  • The standard circuit breaker for Blue Sea Systems Traditional Metal Power Distribution Panels
  • Single pole is frequently used for AC or DC Branch circuit protection
  • Double pole is typically used for AC Main circuit protection
  • Trip Free – cannot be held closed after trip
    Specifications:
  • Voltage Nominal Operating 120/240V AC
  • Operating Temperature -40-85° C
  • Switching Cycles 1000 @ rated amps and volts
  • Terminal Screw- #10-32
    Other Details:
    BLA Code Colour Amps Pole Max. DC Volts
    BS-7202 White 5 1 65
    BS-7204 Black 10 1 65
    BS-7205 Red 10 1 65
    BS-7206 White 10 1 65
    BS-7208 Black 15 1 32
    BS-7210 White 15 1 65
    BS-7212 Black 20 1 65
    BS-7213 Red 20 1 32
    BS-7214 White 20 1 65
    BS-7216 Black 25 1 65
    BS-7218 White 25 1 65
    BS-7220 Black 30 1 32
    BS-7221 Red 30 1 65
    BS-7222 White 30 1 65
    BS-7224 Black 40 1 65
    BS-7226 White 40 1 32
    BS-7228 Black 50 1 32
    BS-7229 Red 50 1 65
    BS-7230 White 50 1 32
    BS-7299 White 8 5 65
