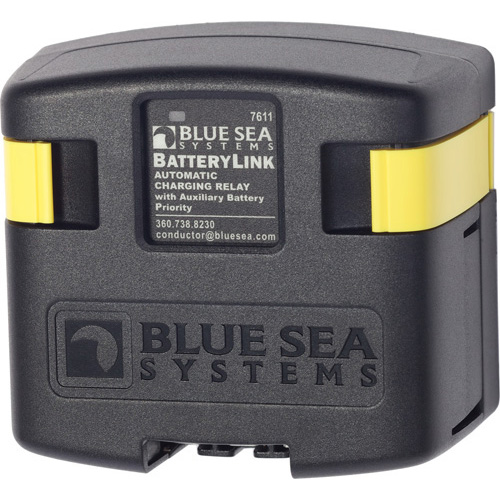

• BatteryLink Automatic Charging Relay - 12/24V DC 120A

BatteryLink Automatic Charging Relay - 12/24V DC 120A

BatteryLink Automatic Charging Relay - 12/24V DC 120A

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$102.17
$102.17 $138.07
SAVE 26% Sold out
BatteryLink Automatic Charging Relay - 12/24V DC 120A

BatteryLink Automatic Charging Relay - 12/24V DC 120A

$102.17
$102.17 $138.07
SAVE 26% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
  • 120 Amp continuous rating
  • 12/24V DC auto ranging voltage input
  • Senses charging on two battery banks
  • Side and bottom knockouts for cable connections
  • Clip-on cover insulates terminal connections
  • 7_8" (22 mm) stud length to accept multiple cable terminals
  • Integrated LED indicates ACR status
  • 1_4" ◊ .032" male quick connect terminals for ground and optional features
  • Largest battery bank cannot exceed Group 27

    Specifications:
    Nominal Voltage: 12V DC 24V DC
    Auxiliary Battery Priority: Yes
    Amperage Operating Current: 175mA @ 12V (Combine) 115mA @ 24V (Combine) 15mA (Open)
    Continuous Rating: 120A
    Intermittent Rating: 210A (5 min)
    Maximum Cable Size 1/0 AWG
    Maximum Torque: 140 in-lb (15.82 Nm)
    Terminal Stud Size: 3/8" - 16 (M10)
View full details
