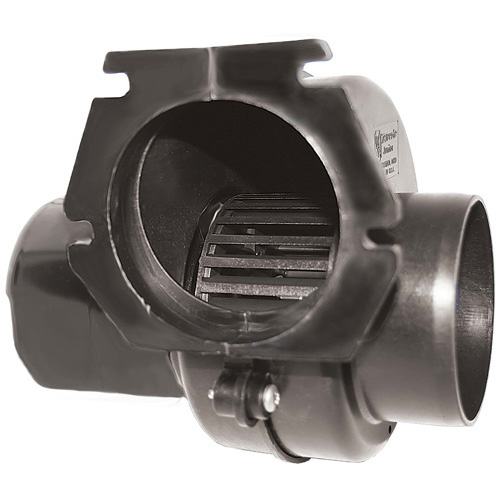

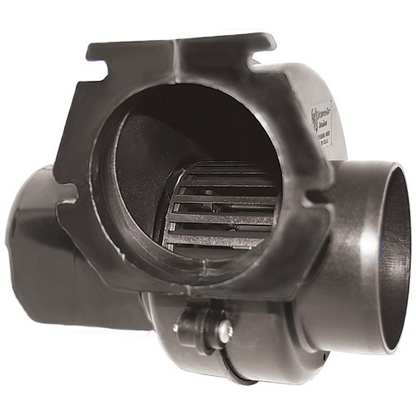

Blower - Standard Duty - Flangemount - 75mm - 12V - 2.9m3/minute

Jabsco blowers are primarily intended for intermittent duty cycles such as evacuating fuel vapours from bilge areas. If desired, they also may be used for other general air circulation applications with longer duty cycles. However, when doing so, it should be noted that the maximum motor life is approximately 1000 hours. Therefore, the blower should only be used for applications if this length of service is acceptable.

Features:

• Tough reinforced plastic housing
• Mount to any surface
• Slip-On inlet ducting connection
• Efficient high volume airflow
• Low current draw
• Corrosion-Resistant materials throughout
• N.M.M.A Type accepted
• Meets regulation 183.410 and ISO 8846 MARINE for ignition protection
• ISO 9097 MARINE

  Specifications:


• Open airflow - 105 CFM (2.9m3/minute)
• Voltage - 12V DC
• Amperage - 4.4 Amps
• Fuse size - 6 Amps
• Weight - 2.3 kg (4 lb)

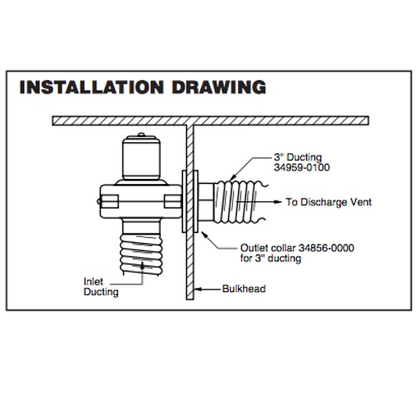

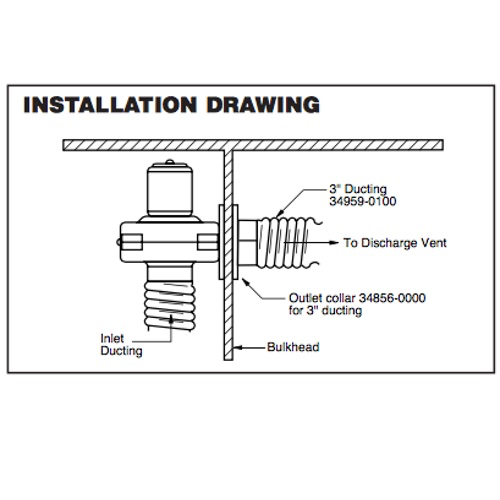

  Note: This blower may also be mounted with inlet through bulkhead, using intake collar No. 34943-0000.

  Wiring: Use stranded copper wire. For lengths up to 25 feet (7.6m) from power source: Use 16 gauge wire for runs up to 25 feet and 14 gauge for runs of 25 to 40 feet. Use larger wire for longer lengths. Use a 10 amp rated on-off switch in positive sided of circuit (Jabsco Model 44960-0002 or 44960-0003). Circuit must be protected with a fuse. Suggested fuse sizes are listed in the specification.

  Operation: See following warning placement statement.

  THE "WIRING" PLACARD (OR EQUIVALENT) SUPPLIED WITH BLOWER MUST BE MOUNTED ADJACENT TO ENGINE IGNITION SWITCHES (ALL LOCATIONS) TO COMPLY WITH TITLE 33, PART 183; SUBPART K, USCG VENTILATION REGULATIONS.

  Additional warning placards are available from factory by requesting form 43003-0418.
