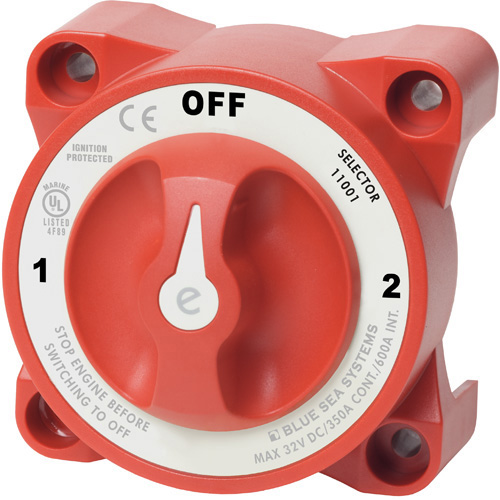

e-Series Selector 3 Position Battery Switch with AFD

e-Series Selector 3 Position Battery Switch with AFD

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$74.80
$74.80 $102.46
SAVE 26% Sold out
e-Series Selector 3 Position Battery Switch with AFD

e-Series Selector 3 Position Battery Switch with AFD

$74.80
$74.80 $102.46
SAVE 26% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected-safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

    Specifications:
    Switch Type: Selector 3 Position
    Color: Red
    Switch Positions: 3
    Battery Combine: No
    Alternator Field Disconnect: Yes
    Maximum Voltage: 32V DC
    Terminal Stud Torque: 140 in-lb (15.82 Nm)
    Continuous Rating: 350A
    Intermittent Rating: 600A (5 min)
    Cranking Rating 10 sec: 2000A
    Cranking Rating 30 sec: 1200A
    Cranking Rating 1 min: 1000A
    Battery Inputs: 2
    Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
    Cable Size to Meet Ratings: 4/0 AWG (120mm)
    Mounting Holes Accept: 1/4" (M6) Screw
    Terminal Stud Size: 3/8" - 16 (M10)
    Weight: 1.30lb (0.59 kg)
