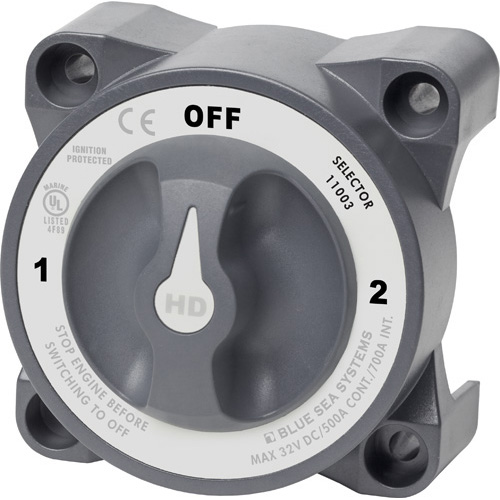

HD Series HD 3 Position Selector Battery Switch with AFD
HD Series HD 3 Position Selector Battery Switch with AFD
Excellent 4.9
19,544 Reviews
Trustpilot
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
Regular price
$90.19
Regular price
$90.19
Sale price
$125.27
Unit price
per
Couldn't load pickup availability
HD Series HD 3 Position Selector Battery Switch with AFD
Regular price
$90.19
Regular price
$90.19
Sale price
$125.27
Unit price
per
🔒 Order with Confidence
🔒 Order with Confidence
🔒 Order with Confidence
✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.
- Includes AFD (Alternator Field Disconnect)
- Ignition protected-safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm) battery cables
Specifications:
Switch Type: Selector 3 Position
Color: Grey
Switch Positions: 3
Battery Combine: No
Alternator Field Disconnect: Yes
Maximum Voltage: 32V DC
Terminal Stud Torque: 220 in-lb (24.86 Nm)
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating 10 sec: 2750A
Cranking Rating 30 sec: 1600A
Cranking Rating 1 min: 1150A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
Cable Quantity to Meet Ratings: Two Cables / Terminal
Cable Size to Meet Ratings: 4/0 AWG (120mm)
Mounting Holes Accept: 1/4" (M6) Screw
Terminal Stud Size: 1/2" (M12)
Weight: 1.30lb (0.59 kg)
