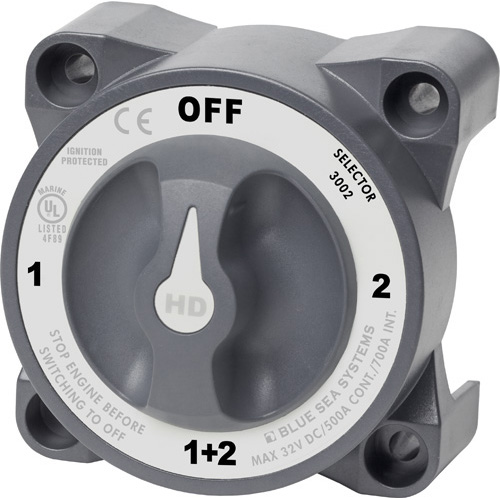

• HD-Series Heavy Duty Selector Battery Switch

HD-Series Heavy Duty Selector Battery Switch

HD-Series Heavy Duty Selector Battery Switch

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$144.14
$144.14 $184.79
SAVE 21% Sold out
HD-Series Heavy Duty Selector Battery Switch

HD-Series Heavy Duty Selector Battery Switch

$144.14
$144.14 $184.79
SAVE 21% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
  • Switches isolated battery banks to all loads or combines battery banks to all loads
  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected-safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm≤) battery cables

    Specifications:
    Switch Type: Selector 4 Position
    Color: Grey
    Switch Positions: 4
    Battery Combine: Yes
    Alternator Field Disconnect: No
    Maximum Voltage: 32V DC
    Terminal Stud Torque: 220 in-lb (24.86 Nm)
    Continuous Rating: 500A
    Intermittent Rating: 700A (5 min)
    Cranking Rating: 30 sec 1600A
    Battery Inputs: 2
    Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
    Cable Quantity to Meet Ratings: Two Cables / Terminal
    Cable Size to Meet Ratings: 4/0 AWG (120mm≤)
    Mounting Holes: Accept 1/4" (M6) Screw
    Terminal Stud Size: 1/2" (M12)
    Weight: 1.25lb (0.57 kg)
