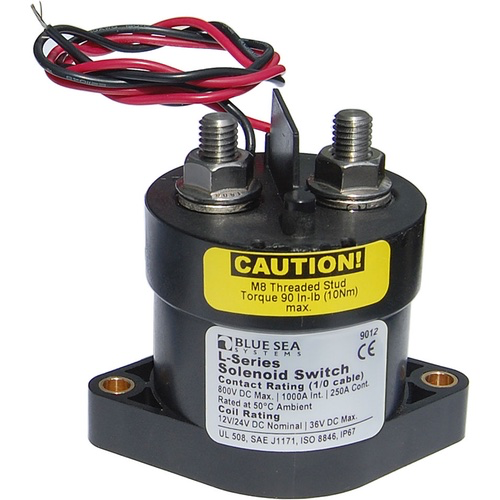

• L Solenoid 12/24V DC 250A

L Solenoid 12/24V DC 250A

L Solenoid 12/24V DC 250A

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$216.02
$216.02 $273.44
SAVE 20% Sold out
L Solenoid 12/24V DC 250A

L Solenoid 12/24V DC 250A

$216.02
$216.02 $273.44
SAVE 20% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
  • Hermetically sealed contacts / vaporproof
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Activated by an ON-OFF switch mounted anywhere
  • integrated coil control minimizes heating and amperage draw
  • 450 Amp Class
  • Designed for 12 or 24 Volt systems
  • Ignition protected -- safe for installation aboard gasoline-powered boats
  • Activated by a low amperage ON-OFF switch mounted anywhere

    Specifications:
    Control Circuit Connection: 20 AWG Tinned Wire
    Nominal Voltage: 12V DC 24V DC
    Coil Function: Normally Open
    Mounting: #10
    Operating Amperage Current: 3.6A when changing state
    Amperage Operating Current continuous: 0.13A @ 12 V 0.07A @ 24 V
    Terminal Stud Torque: 90 in-lb (10.17 Nm)
    Continuous Rating: 250A 300A 400A 450A
    Intermittent Rating: 275A (5 min) 400A (5 min) 500A (5 min) 600A (5 min)
    Cranking Rating 30 sec: 1,000A 1000A DC
    Contact Form: SPST-NO
    Input Voltage: 9-36V DC
    Inrush Rating: 0.25 sec (10 repeats): 2000A
    Switching Cycles: 1,000,000
    Terminal Stud: Serrated Flange Nut
    Terminal Stud Length: 0.66in (16.76 mm)
    Terminal Stud Size: 5/16" (M8)
    Weight: 1.00lb (0.45 kg)
