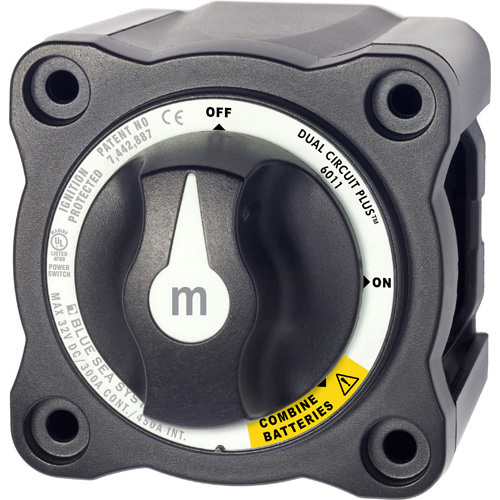

• m-Series Mini Dual Circuit Plus Battery Switch - Black

m-Series Mini Dual Circuit Plus Battery Switch - Black

m-Series Mini Dual Circuit Plus Battery Switch - Black

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$63.96
$63.96 $87.62
SAVE 27% Sold out
m-Series Mini Dual Circuit Plus Battery Switch - Black

m-Series Mini Dual Circuit Plus Battery Switch - Black

$63.96
$63.96 $87.62
SAVE 27% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
  • Simultaneously switches two isolated battery banks or combines battery banks to all loads
  • Make before break contact design allows switching between battery banks without power interruption

    Specifications:
    Switch Type: Dual Circuit Plus
    Color: Black
    Switch Positions: 3
    Battery Combine: Yes
    Alternator Field Disconnect: No
    Maximum Voltage: 32V DC
    Terminal Stud Torque: 120 in-lb (13.56 Nm)
    Continuous Rating: 300A
    Intermittent Rating: 450A (5 min)
    Cranking Rating 30 sec: 675A per circuit
    Battery Inputs: 2
    Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
    Cable Size to Meet Ratings: 4/0 AWG (120mm≤)
    Mounting Holes: Accept #10 Screw
    Terminal Stud Size: 3/8" - 16 (M10)
    Weight: 0.80lb (0.36 kg)
