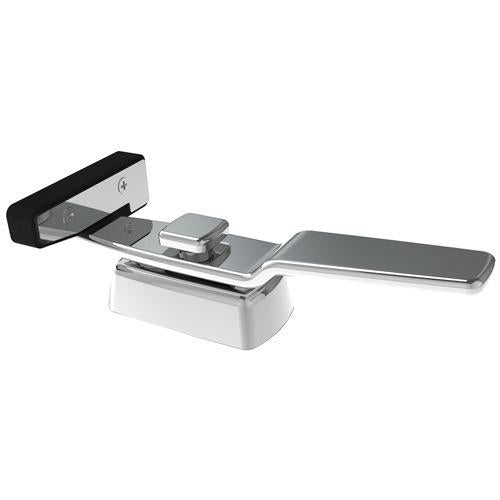

Marine Town Transom Door Latch - Stainless Steel - Strike: Proud

Marine Town 0107366 / 0107367

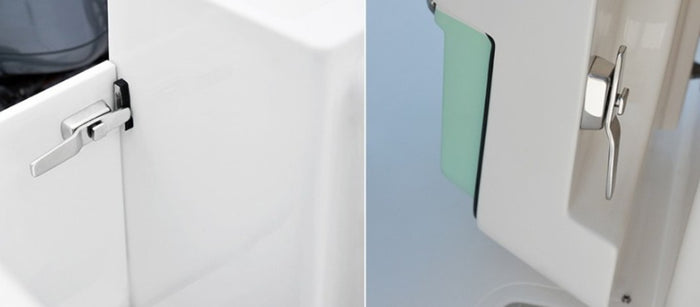

Heavy duty door latch designed to suit transom and large doors. Design incorporates spring loaded push button release action which allows for one handed operation. Can be rotated through 90 degrees and is locked in position upon release of the button. Supplied complete with striker plate and can be mounted for either left or right hand orientation.

Features:

• Contemporary design.
• Door can be opened easily with one hand push button operation.
• Latch can be rotated 90° and locked in position for security.
• Works on both right and left hand transom doors.
• Screw size #8 for strike.
• Screw size 1/4" for 193331 latch body.
• Screw size #10 for 193332 latch body.

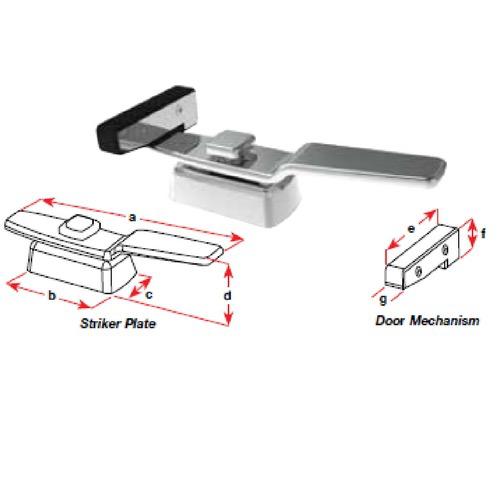

  Our Code	a mm	b mm	c mm	d mm	e mm	f mm	g mm
  193331	166	73	39	43	71	24	20.5
  193332	213	84	49	53	71	24	20
