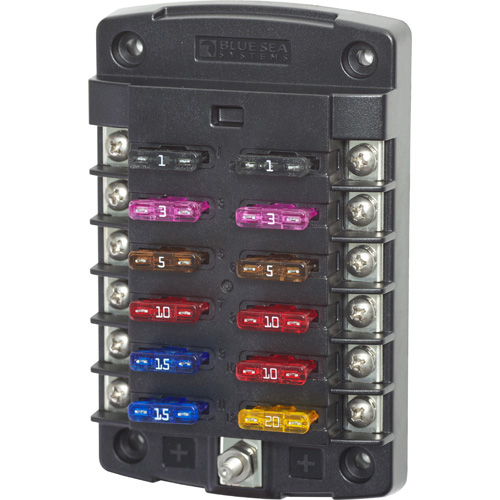

• ST Blade Split Bus Fuse Block - 12 Circuits

ST Blade Split Bus Fuse Block - 12 Circuits

ST Blade Split Bus Fuse Block - 12 Circuits

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$33.47
$33.47 $47.82
SAVE 30% Sold out
ST Blade Split Bus Fuse Block - 12 Circuits

ST Blade Split Bus Fuse Block - 12 Circuits

$33.47
$33.47 $47.82
SAVE 30% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
  • Consolidates branch circuits and in-line fuses
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO and ATC fast acting blade fuses
  • Fuses sold separately

    Specifications:
    Circuits: 12
    Maximum Amperage: 100A per block, 30A per circuit
    Maximum Voltage: 32V DC
    Mounting: #8 Screw (M4)
    Positive Bus: #10-32 Stud
    Recommended Torque: 24 in-lb (2.71 N∑m)
    Screw Terminal Torque: 15 in-lb (1.69 Nm)
    Screw Terminal Type: #8-32 Screws with captive star lock washer
    Weight: 0.60lb (0.27 kg)
