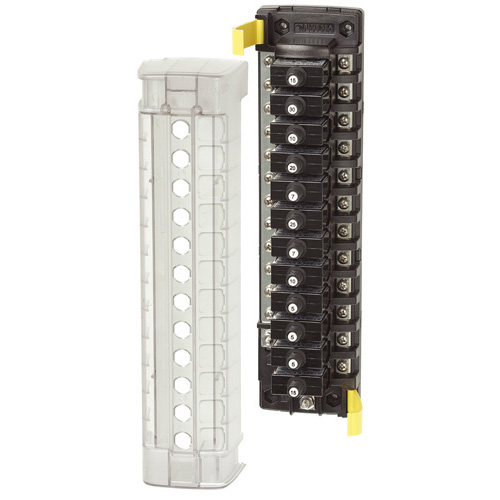

ST CLB Circuit Breaker Block - 12 Position with Negative Bus
ST CLB Circuit Breaker Block - 12 Position with Negative Bus
Excellent 4.9
19,544 Reviews
Trustpilot
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
Regular price
$81.90
Regular price
$81.90
Sale price
$102.37
Unit price
per
Couldn't load pickup availability
ST CLB Circuit Breaker Block - 12 Position with Negative Bus
Regular price
$81.90
Regular price
$81.90
Sale price
$102.37
Unit price
per
🔒 Order with Confidence
🔒 Order with Confidence
🔒 Order with Confidence
✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common Source
Minimum Operating Temperature: -10∞ C
Maximum Operating Temperature: 60∞ C
Mounting Centers: 10.13in (257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 11.19in (284.23 mm)
Weight: 1.50lb (0.68 kg)
