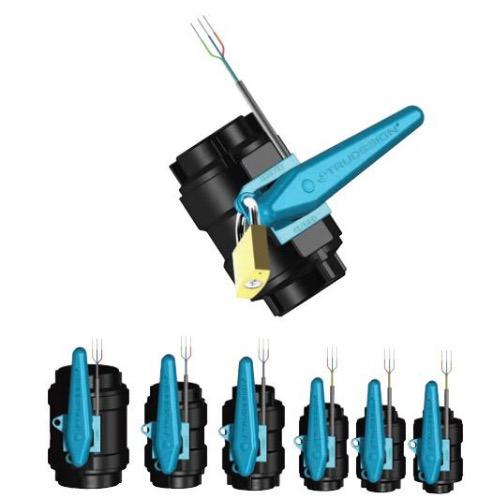

TRUDESIGN Ball Valve - Position Monitored

Designed and made in New Zealand for use in marine applications above and below the water line, our Ball Valves are IMCI approved to ISO standard 9093-2, and are ideal for controlling inlet and outlet water requirements. Position Monitoring allows remote monitoring of Ball Valve Position. The Position Monitoring circuit can also be used as part of an engine or generator start interlock to ensure these don’t start without cooling water available. The body of the Ball Valve is manufactured in glass reinforced nylon composite with high impact and tensile strength resulting in a light weight unit, free from corrosion and electrolysis issues. The ball and sealing rings utilise a PTFE polymer to ensure a smooth action, and continuous ease of operation over many years. The Ball Valve is available in BSP thread forms and can be locked in the closed position for use on toilet waste outlets.

Features:

Glass reinforced nylon composite construction - light weight and high strength

Corrosion resistance - Long life, Minimal maintenance, No corrosion deposits to remove

Electrically non conductive - No electrical bonding, suitable for use on all hull types - aluminium, steel, wood or FRP hulls

UV resistant - Will not break down in the sun

Chemical resistant - Impervious to diesel, petrol, oil and antifouling paints

Large operating temperature range: -40° to 80°C (-40° to 176°F)

PTFE enhanced sealing and sliding elements - Reduced friction for easy operation, reduction in blockages due to fouling

High quality - Quality materials from accredited suppliers, standards approved through IMCI to ISO standard 9093-2, every Ball Valve is leak tested during manufacture

Position Monitored - Monitoring from an accessible location, indication of multiple Ball Valve positions, able to be used as an engine interlock to disable starting when closed

Specifications

Ball Valves are available in: BSP (British Standard Pipe)

The Position Monitoring function switches state when the Ball Valve is in the open position

Maximum switching current - 500mA

Wire length - 2m (6.5’)
