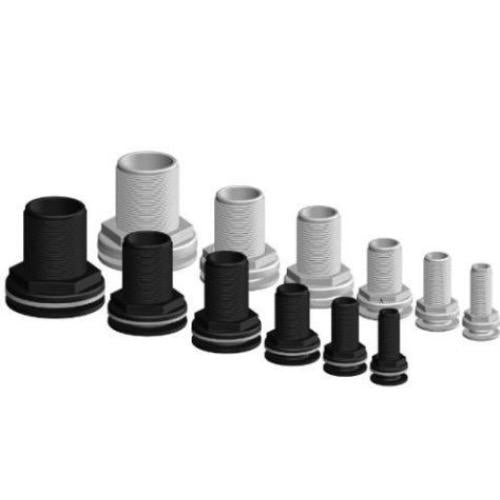

TRUDESIGN Skin Fitting Domed

Designed and made in New Zealand, TruDesign® Skin Fittings are the superior composite through-hull solution. The Skin Fitting body and nut are precision moulded from glass-reinforced Nylon composite. High strength, high-modulus glass fibres provide dramatic strength, stiffness, toughness and dimensional stability. These are some of the unique properties that give significant advantages and weight-savings over traditional metallic fittings. TruDesign® Skin Fittings eliminate all corrosion and bonding problems associated with electrolysis. Approved and certified to ISO International Standards by the International Marine Certification Institute (IMCI, Belgium) & Bureau Veritas, TruDesign® Skin Fittings are quality-made giving peace of mind performing in the harsh marine environment.

Features:

• Manufactured from a glass-reinforced Nylon composite - High strength, tough and light weight
• Compatible with all hull types - Can be used on aluminium, steel, wood, composite & GRP hulls
• Immune to corrosion & electrolysis - Long life with no decreased performance due to corrosion
• Chemical resistant - Unaffected by diesel, petrol, chemicals, and antifouling paints
• U.V resistant - Will not degrade or discolour from the sun’s ultraviolet rays
• Paintable - Paintable with all types of antifoul including Coppercoat™
• Fits TruDesign® Ball Valves and other parallel BSP or NPS threads - Universal compatibility to TruDesign® brand fittings and other marine hardware
• Large operating range - Suitable for all marine conditions from -20°C to +100°C
• Supplied in individual plastic bags with a header card and info sheet - Lists IMCI Certification, size, and installation instructions as per IMCI regulations
• Meets ABYC H-27 Standard when installed in combination with TruDesign® Ball Valves & Load Bearing Collars

  Standards and Approvals
  TruDesign® Skin Fittings are certified by the International Marine Certification Institute (IMCI) and Bureau Veritas to meet; ISO 9093-2 Small craft - Seacocks and through-hull fittings - Part 2: Non-metallic Note: 1/2” size Skin Fittings not approved to ISO 9093-2

  In meeting the ISO 9093-2 standard, Skin Fitting assemblies are subjected to a 1500 N (155 kg / 341.7 lb) force for 10 cycles from the most inward part of the assembly, without any damage occurring.

  TruDesign® Skin Fittings, when assembled together with TruDesign® Ball Valves and TruDesign® Load Bearing Collars, meet ABYC’s H-27 standard. This allows the entire assembly to withstand a 500 lb (226.8 kg) load applied to the inboard end of the assembly (i.e. from the Ball Valve’s Tail fitting) for a minimum of 30 seconds without any damage occurring.

  Technical:
• TruDesign® Skin Fittings are suitable for installation in all types of hull construction; steel, aluminium, composite, fibreglass - cored and solid, wooden sandwich
• TruDesign® Skin Fittings are also able to be used on caulked solid wood hulls. Ensure fittings are always installed in the centre of individual planks

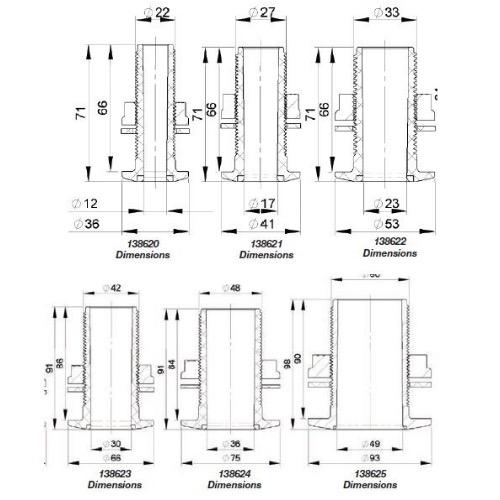

  BLA Code	Minimum Internal Diameter (mm)	Maximum Hull Thickness (mm)
  138620BLK	12	35
  138620	12	35
  138621BLK	17	35
  138621	17	35
  138622BLK	23	35
  138622	23	35
  138623BLK	30	48
  138623	30	48
  138624BLK	36	48
  138624	36	48
  138625BLK	49	54
  138625	49	54
