Vetus FS Fuel Splash-Stop — Deck Entry Mount, 38 & 51mm, Diesel (3 Models)

Vetus FS Fuel Splash-Stop — Deck Entry Mount

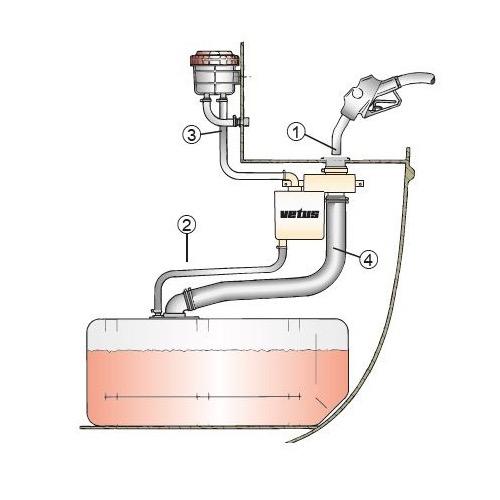

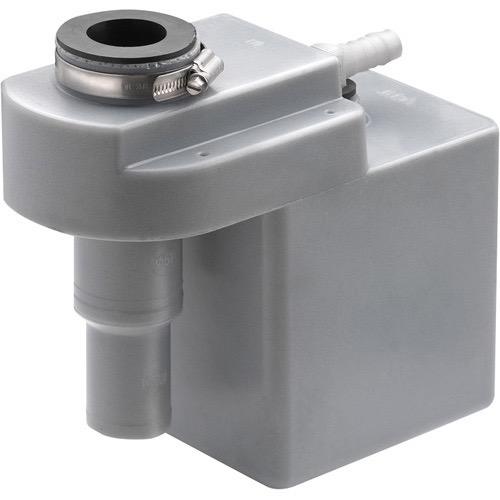

The Vetus FS Fuel Splash-Stop connects directly to a deck entry plate (38mm or 51mm diameter) and prevents overflowing diesel fuel and froth from escaping onto the deck or into the water. Overflow is captured in an internal reservoir (~2 litres capacity) and returned to the main tank via the tank vent connection.

The breather line to outside connects at port (3). A Vetus diesel smell filter can be fitted in this breather line — if positioned well above deck level, the breather exit may be below deck level if required.

Available in 3 models to suit 38mm or 51mm deck entries and 16mm or 25mm breather connections. All models accept 38mm or 51mm filler hose (except FS5125 which is 51mm only). All dimensions: 250 × 120 × 215mm (L × W × H).

Note: Deck entry plate is optional equipment, ordered separately.

Key Features

• Prevents deck overflow and water pollution from diesel spillage
• ~2 litre internal reservoir — excess fuel returns to tank
• Doubles as tank ventilation connection
• Compatible with Vetus diesel smell filter (optional)
• Suits 38mm or 51mm deck entries
• All models: 250 × 120 × 215mm (L × W × H)

Variants

Compare with the Vetus FSA Splash-Stop (hose-mount, no deck entry plate required) if a deck entry plate is not being used.
