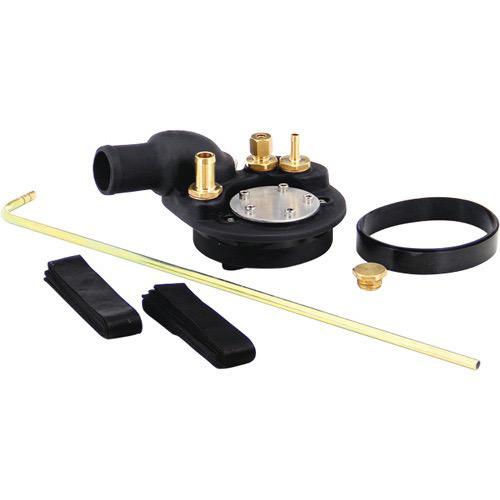

The Vetus Fuel Connection Kit is engineered to save considerable installation time when fitting fuel systems to diesel or petrol tanks. The anodised, salt-water resistant aluminium lid features a counter flange and rubber seal, tightened with just 3 bolts for a reliable, leak-free connection. Only a single 114mm hole needs to be cut in the top of the fuel tank — compatible with plastic, metal, and GRP tanks.
- Filling hose: 38mm or 51mm diameter options
- 16mm tank ventilation hose connection
- Fuel suction pipe (model dependent):
— ø8mm, max. tank depth 440mm
— ø10mm, max. tank depth 850mm
— ø15mm, max. tank depth 970mm - Fuel return for ø8, 10, or 15mm hose
- Mounting flange for tank level sensors (5-hole SAE flange compatible)
- 6.3mm terminal tag for earth wire
- 2 mounting straps to secure tank
Suitable for diesel and petrol fuel tanks in plastic, metal, or GRP construction. Select your required filler diameter and supply/return size from the variant options above.
