The Vetus QB05M series is a 90° male angled hose connector machined from stainless steel, designed for marine plumbing applications. The male BSP thread end connects directly to standard fittings, while the barbed hose tail provides a secure, leak-free connection to flexible hose.
Key Features
- 90° elbow configuration — ideal for tight routing in confined bilge and engine spaces
- Stainless steel construction — corrosion resistant for marine environments
- Male BSP (G) thread one end, barbed hose tail the other
- Available in ½", ¾", 1" and 1¼" thread sizes (20–38mm hose)
Specifications

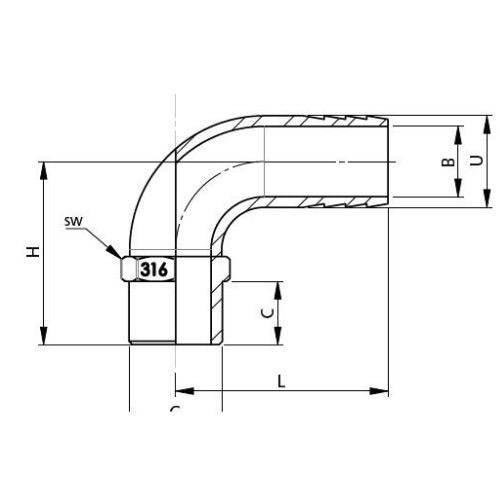

| Type | Thread G | C (mm) | U (mm) | B (mm) | L (mm) | H (mm) | SW (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| QB05MD-20 | ½" | 15 | 20 | 15 | 54 | 39 | 23 | 0.11 |
| QB05ME-25 | ¾" | 17 | 25 | 19 | 66 | 46 | 29 | 0.19 |
| QB05MF-30 | 1" | 18 | 30 | 24 | 73 | 51 | 35 | 0.27 |
| QB05MG-38 | 1¼" | 21 | 38 | 31 | 82 | 57 | 44 | 0.38 |
