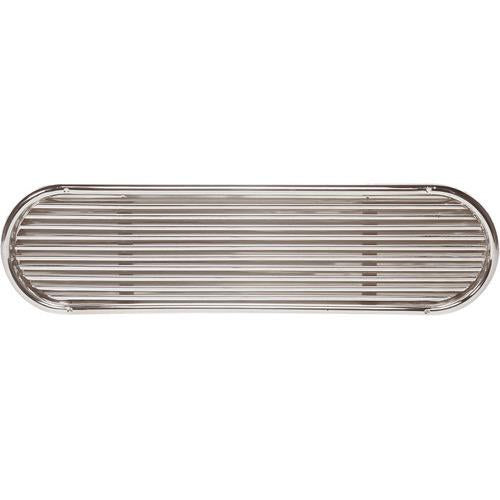

Vetus SSVL Polished Stainless Steel Air Suction Vent — Engine Ventilation
Engineered to provide the correct volume of ventilation air for marine diesel engines, the Vetus SSVL series air suction vent is sized by engine horsepower. In addition to combustion air, engines require ventilation air to dissipate residual heat — approximately 6.1 m³ per kW (4.5 m³ per hp) per hour at a maximum air velocity of 3 m/s. The SSVL model numbers correspond to the engine horsepower rating for which each vent is suitable.
The frame and grilles are constructed from high-gloss polished stainless steel (AISI 316) for a premium, corrosion-resistant finish.
Key Features
- High-gloss polished AISI 316 stainless steel frame and grilles
- Sized by engine horsepower — model number = suitable HP rating
- Designed for engine bay ventilation air requirements
- 6 sizes available: SSVL030 to SSVL150
Specifications

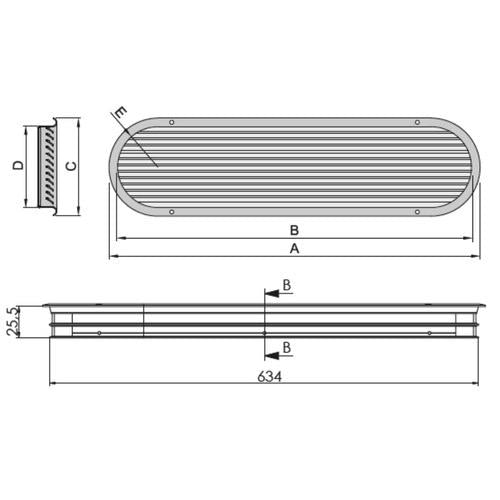

| Model | Length A (mm) | Cut-out B (mm) | Width C (mm) | Cut-out D (mm) | Cut-out Radius E | Free Flow Area (dm²) |
|---|---|---|---|---|---|---|
| SSVL030 | 360 | 340 | — | — | — | — |
| SSVL080 | 660 | 640 | 159 | 139 | R 69.5 | 3.21 |
| SSVL090 | 670 | 650 | 172 | 152 | R 76 | 3.63 |
| SSVL100 | 730 | 710 | 172 | 152 | R 76 | 4.00 |
| SSVL125 | 750 | 730 | 198 | 178 | R 89 | 5.03 |
| SSVL150 | 890 | 870 | 198 | 178 | R 89 | 6.08 |
Note: SSVL030 dimensions C, D, E and free flow area not available in current data — contact us for full specs on this size.
