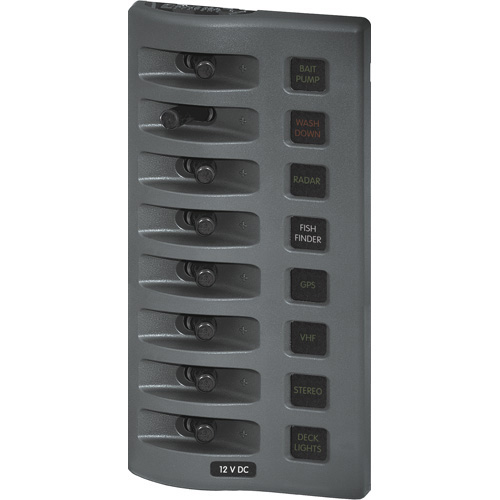

• WeatherDeck 12V DC Waterproof Fuse Panel - Gray 8 Positions

WeatherDeck 12V DC Waterproof Fuse Panel - Gray 8 Positions

WeatherDeck 12V DC Waterproof Fuse Panel - Gray 8 Positions

Excellent 4.9
19,544 Reviews
Designed & Developed in Los Angeles, CA
Shopify Secure
Recent Orders Widget
400+ orders
in the last 24h
465 sold in the past 24 hours
401 people are viewing this item
Only 1% left in stock
$150.20
$150.20 $238.41
SAVE 36% Sold out
WeatherDeck 12V DC Waterproof Fuse Panel - Gray 8 Positions

WeatherDeck 12V DC Waterproof Fuse Panel - Gray 8 Positions

$150.20
$150.20 $238.41
SAVE 36% Sold out
check_box

🔒 Order with Confidence

🔒 Order with Confidence

✅30-Day Money Back Guarantee — no risk trying it.
🚚Free shipping available. Orders processed within 24–48 hours.
🔐Secure & encrypted checkout with trusted payment providers.

Shipping & Delivery Information
Order today, estimated delivery Oct 20 - Oct 21
Safe & secure checkout powered by Shopify
4–5 Business Day Delivery
90-Day Free Returns
Delivery available to United States
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 ñ protected against immersion up to 1 meter for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting circuit for remote switching and dimming
  • Available in 2, 4, 6, and 8 circuit models
  • Each panel can be mounted in four different orientations
  • Integrated ATO/ATC fuse based circuit protection
  • Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

    Specifications:
    Weatherproof: Waterproof
    Positions: 8
    Nominal Voltage: 12V DC
    Circuit Protection: Fuse
    Maximum Amperage: 15A @ 12V DC (per circuit)
    Panel Cumulative Rating: 100A
    Backlit Label: Bicolored LED
    Backlighting Amperage: 10mA /Illuminated Circuit
    Backlighting Voltage: 12V DC
    Material: Reinforced Polycarbonate
    Height: 7.70in (195.58 mm)
    Width: 3.88in (98.55 mm)
    Depth: 2.50in (63.5 mm)
    Weight: 1.55lb (0.7 kg)
